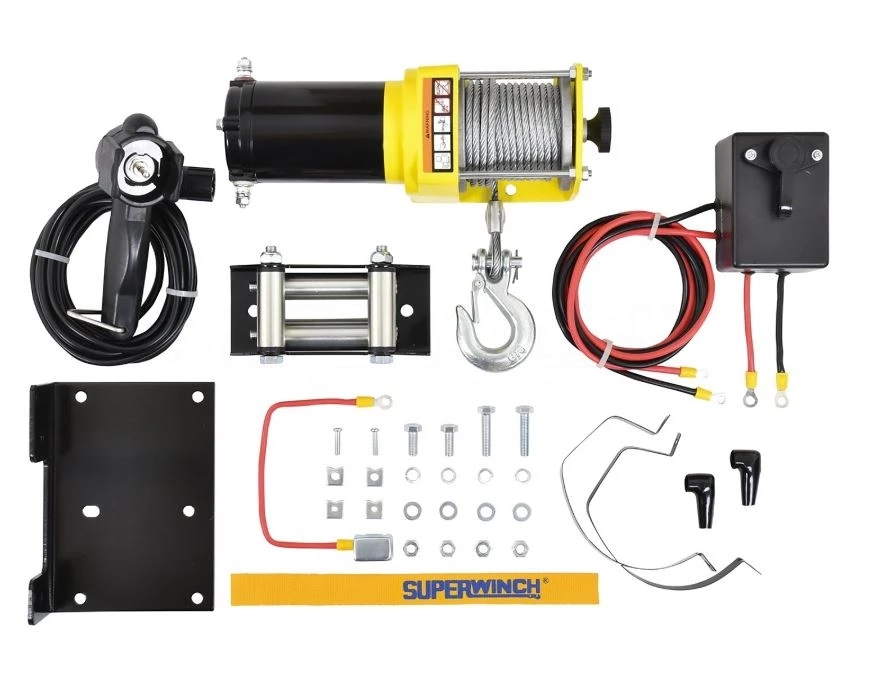

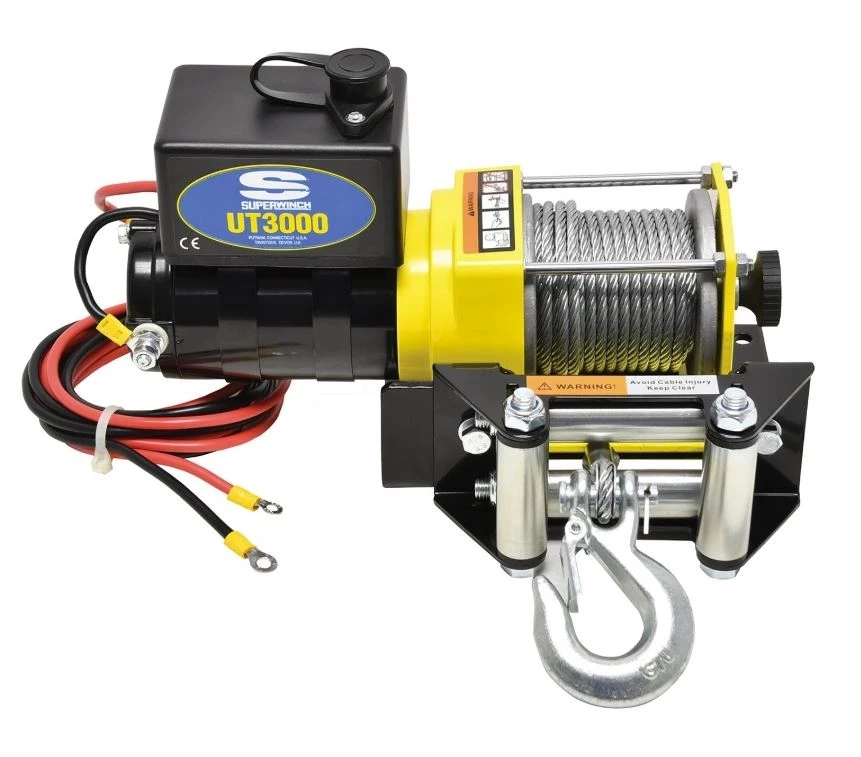

Superwinch UT3000 12V Wire Rope Winch

The Superwinch UT3000 provides up to 3,000 lbs of pulling capacity, freespool control, and an integrated cable tensioner to keep your cable wrapped tight. The fully integrated Controller and Roller Fairlead, already mounted on a rugged mount plate makes this winch a great choice for simple jobs around the house or worksite.

Features

• 12V DC 3,000 lbs rated line pull

• 1.2 HP permanent magnet motor provides dynamic braking

• 1-Stage planetary gearing with 153:1 ratio

• Circuit breaker protected

• Free-spooling, pull and turn clutch

• 3/16 in x 40 ft steel wire rope

• Clevis pinned hook

• Zinc plated 4-way fairlead

• 12 ft wired hand-held remote



Specifications
Brake: Dynamic
Clutch: Free-Spooling, Pull and Turn
Dimensions: 12.0in L x 7.5in D x 7.0in H (304.8mm L x 190.5mm D x 177.8mm H)
Drum Diameter: 1.25in (31.8mm)
Drum Length: 2.83in (72.0mm)
Fairlead: Heavy Duty 4-Way Roller
Gear Ratio: 153:1
Gearing: 1-Stage Planetary
Hook: Removable Clevis Pinned
Installed Weight: 19.5 lbs (8.84 kg)
Line Pull, 0 lbs: 5 Amps Motor Draw/8.5 FPM (2.58 MPM) Line Speed
Line Pull, 3,000 lbs: 110 Amps Motor Draw/2.2 FPM (0.6 MPM) Line Speed
Motor: 1.2 HP Permanent Magnet
Mounting Bolt Pattern: 2 Hole, 3.15in (80mm) on Center
Rated Line Pull: 3,000 lbs (1360.8 kg)
Remote: Sealed Hand-held with 12ft cord
Rope: Steel Wire 3/16in x 40ft (4.8mm x 12.0m)
Solenoid: Circuit Breaker Protected
Warranty: 1 Year Limited
