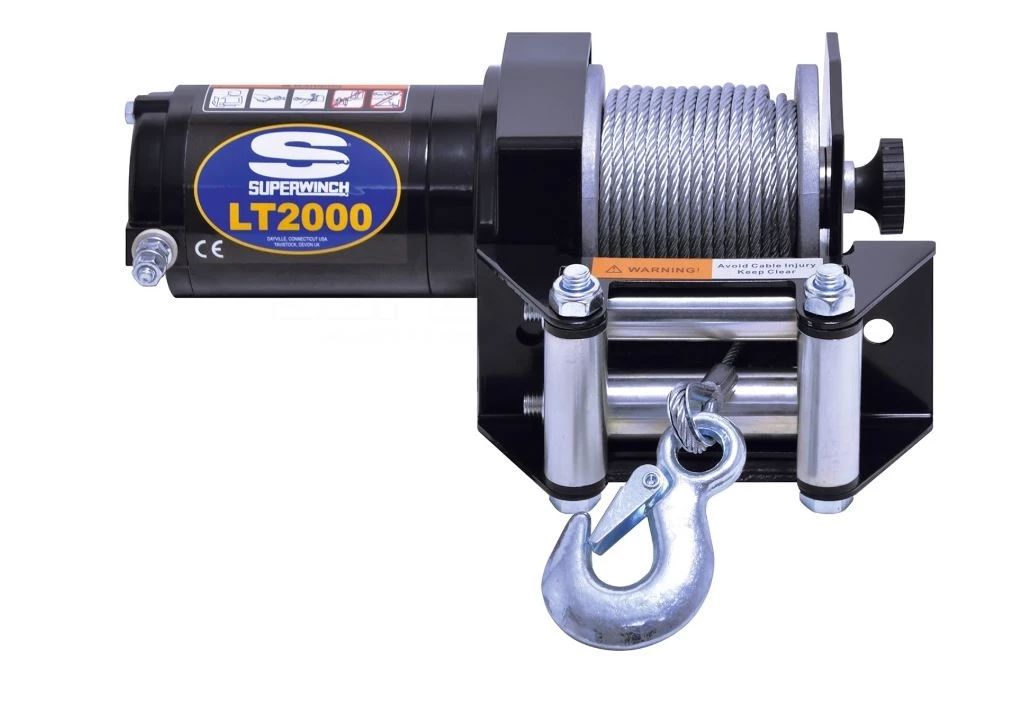

Superwinch LT2000 12V Wire Rope Winch

Built for action, the Superwinch LT2000 winch provides up to 2,000 lbs of reliable pulling power. This utility/multi purpose winch features a free-spooling pull-and-turn clutch and a handheld wired remote control, perfect for a variety of users. Perfected over the years, the LT Series offer unmatched durability and performance.

Features

• 12V DC 2,000 lbs rated line pull

• Sealed 1.0 HP permanent magnet motor

• 1-Stage planetary gearing with 153:1 ratio

• Circuit breaker protected

• Free-spooling, pull and turn clutch

• 5/32 in x 50 ft steel wire rope

• Permanent/latched hook

• Zinc plated 4-way roller fairlead

• Handle bar mounted rocker switch



Specifications
Brake: N/A
Clutch: Free-Spooling, Pull and Turn
Dimensions: 11.0in L x 4.1in D x 4.1in H (285mm L x 105mm D x 105mm H)
Drum Diameter: N/A
Drum Length: 2.83in (72.0mm)
Fairlead: N/A
Gearing: 1-Stage Planetary
Hook: Latched with Rope Thimble, Permanent
Installed Weight: 12 lbs (5.4 kg)
Line Pull, 0 lbs: 10 Amps Motor Draw/10.0 FPM (3.0 MPM) Line Speed
Line Pull, 2,000 lbs: 100 Amps Motor Draw/2.5 FPM (0.8 MPM) Line Speed
Motor: 1.0 HP Permanent Magnet
Mounting Bolt Pattern: 2 Hole, 3.15 (80mm) on center
Rated Line Pull: 2,000 lbs (907.2 kg)
Remote: Hand Held, 8ft cord
Rope: Steel Wire 5/32in x 49ft (3.9mm x 15m)
Warranty: 1 Year Limited
