CURT 7-WAY RV BLADE CONNECTOR PLUG & SOCKET WITH HARDWARE (PACKAGED) #58152

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer’s electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer.

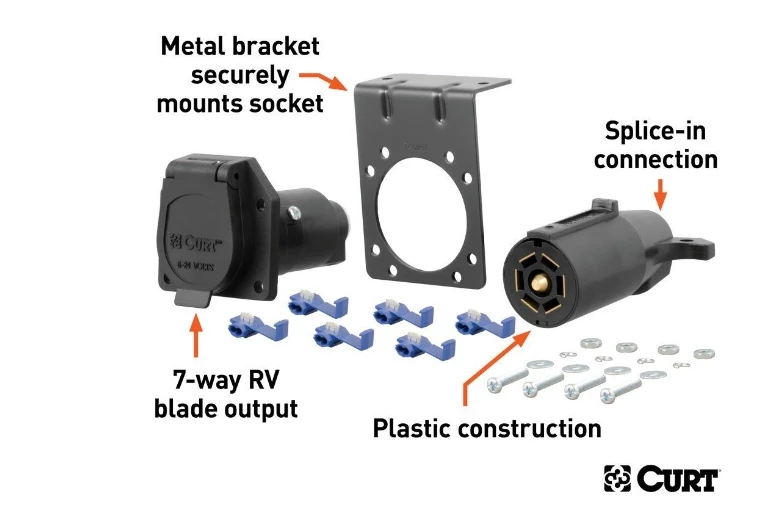

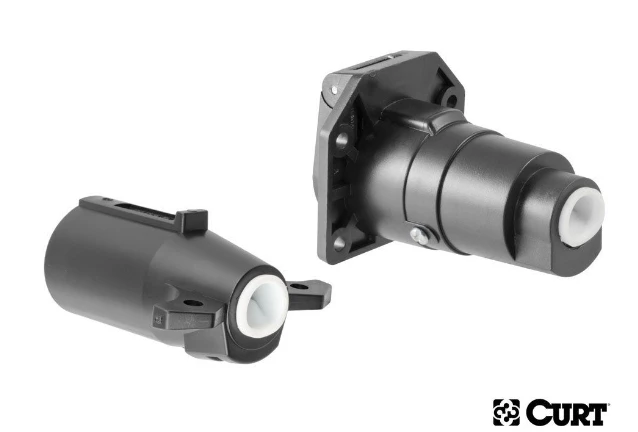

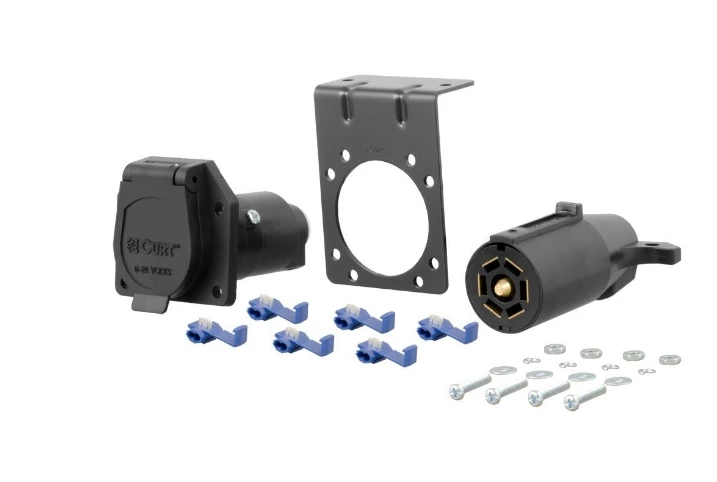

This 7-way round RV blade connector is designed to supply power for tail lights, turn signals, electric trailer brakes, a 12-volt battery, reverse lights and brake lights, as well as a ground connection. It features rust-free black plastic construction and comes with a spring-loaded cover to keep out dust and water. This 7-way RV blade connector kit includes both a male-end plug for your trailer and a female-end socket for your vehicle, as well as snap locks and a mounting bracket for a complete installation. 7-way RV blades are typically used on RV travel trailers, and these particular connectors can actually be easily interchanged with other 7-way RV connectors.



• Splices into existing wiring to provide connections for both vehicle and trailer
• 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
• Interchangeable with other 7-way RV connectors
• Concealed terminals help ensure a reliable connection
• Snap locks included for fast, secure splicing
• Spring-loaded dust cover keeps connector clean when not in use

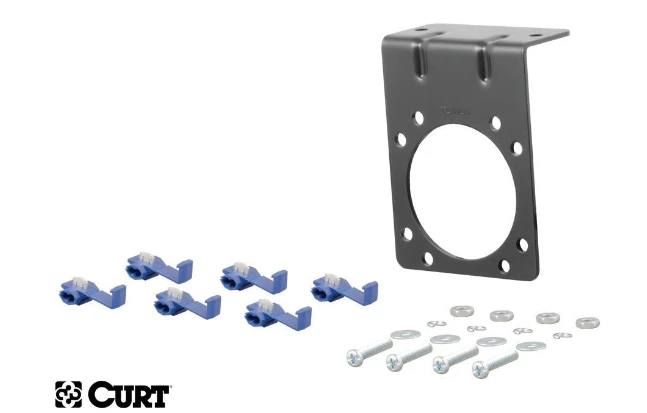

• Metal bracket securely mounts socket to the vehicle or trailer hitch
• 7-way RV blade connectors commonly used on RV travel trailers

Notes:

• Wires not included

Features

• Shipping Weight0.900
• Electrical Component LocationVehicle / Trailer
• Part Type7-Way Connector
• WarrantyOne-Year Limited Warranty
• Product7-Way Round RV Connector
• MaterialPlastic
