CURT 6-WAY ROUND CONNECTOR PLUG & SOCKET (PACKAGED) #58092

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer’s electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road. CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer.

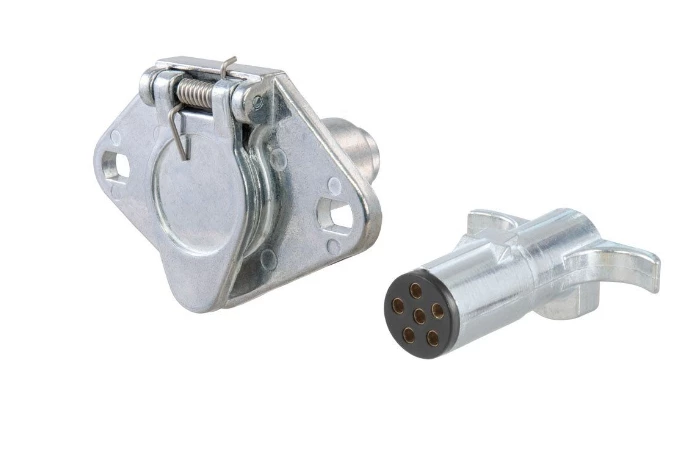

This 6-way round connector is designed to supply power for tail lights, turn signals, electric trailer brakes, a 12-volt battery and brake lights, as well as a ground connection. It features durable die-cast metal construction and comes with a spring-loaded steel cover to resist damage from dust and water. This 6-way round connector includes both a male-end plug for your trailer and a female-end socket for your vehicle. 6-way round connectors are commonly used on livestock trailers, boat trailers and utility trailers.

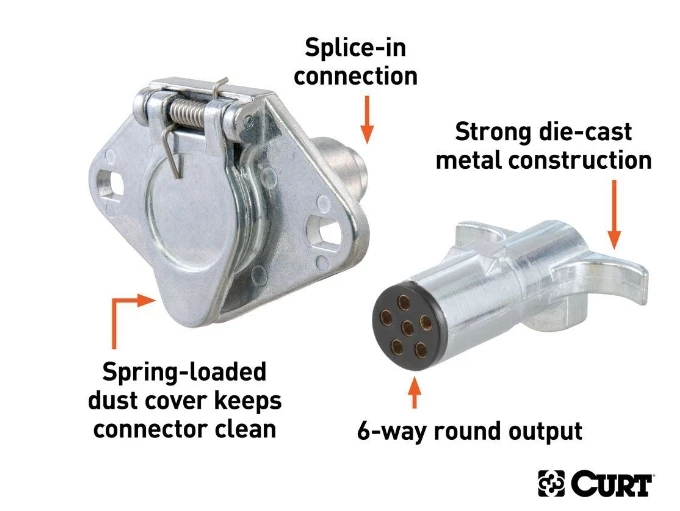

• Splices into existing wiring to provide connections for both vehicle and trailer
• 6-way connects tail, brake, turn signals, electric brakes and auxiliary power
• Constructed from strong die-cast metal
• Concealed terminals help ensure a reliable connection
• Spring-loaded dust cover keeps connector clean when not in use
• 6-way round connectors commonly used for horse, farm, boat and utility trailers

Notes:

• Wires not included

Features

• Electrical Component LocationVehicle / Trailer
• Part Type6-Way Connector
• Shipping Weight0.670
• WarrantyOne-Year Limited Warranty
• MaterialDie-Cast
